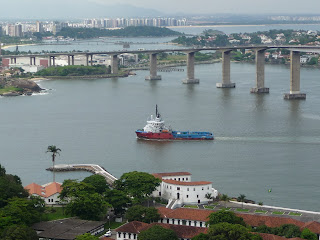

Entrada do AHTS Lars Grael ( Reboque e Manuzeio de Ancoras )

Em homenagem ao velejador Lars Grael, a Delba Maritima Offshore, encomendou este belo navio de Reboque/Manuzeio de Ancoras / e suprimento, porem a emcomenda se realizou em estaleiro Chines (Yangzhou Dayang) .
E por mera concidencia este navio tem operado em nossas aguas, e passou justamente proximo ao local onde o velejador foi albaroado por uma lancha e infelizmente teve a perna amputada.

Dados Tecnicos: ( Epero que leiam, deu trabalho adquirir esta informaçoes).

Type : Anchor Handling Tug Supply Vessel,

FIFI I,

DP I

Vessel Name : LARS GRAEL

Flag : BRAZILIAN

Por Regist: NATAL

Builder : Yanghzou Dayang Shipyard Shipbuilding Co. Lt (China)

Delivery : 2006

TECHNICAL DATA:
Classification:
BV. Class 1XHull, XMach,

Supply Vessel, Unrestricted navigation, Fire Fighting Ship I Water spray,

DYNAPOS AM/T (Class 1), X AUT-UMS.

Optional: Special Service/Stand by Rescue Vessel

Main Characteristics:
Length overall: 64.80 m.

Breadth moulded: 16.00 m.

Depth main deck: 5.80 m.

Max draft: 4.90 m.

Deadweight at max draft: 1,603 t

Bollard pull: 85 t.

Gross tonnage: 1,966

Capacities (appox.):
Cargo deck area: 420 m² (33x13m) @ 5.0 t/m².

Deck cargo: 800 tons @ 0.9 m above deck.

DW/WB: 464 m³ - 1 x 120 m³/h at 7 bars.

Fuel oil cargo: 607 m³ - 1 x 120 m³/h at 7 bars.

Fresh water: 446 m³ - 1 x 120 m³/h at 7 bars.

Liquid mud/Brine: 92 m³ - 1 x 120 m³/h at 7 bars.

Liquid mud tank are designed for products up to 2.5 sg and are equipped with agitators and circulation.

Chain locker/Brine/Mud: 112 m³.

Dispersant: 20 m³.

Foam: 18 m³.

Bulk cement: 170 m³ - 4 tanks-sg 2.35 - 2 products2 air compressors - 2x20m³/min at 5.6 bars

Propulsion / Machinery :
Main engines: 2x 2,640 kW, MAK, total: 5.280 kW = 7,183 hp

Propellers: 2 Type CP, dia: 2,900 mm in nozzles.

Rudders: 2 high lift flap type.

Shaft generators: 2 x 1,600 kVA at 1,800 rpm, 3x 450V 60 Hz

Auxiliary generators: 2 x 440 kVA at 1,800 r pm, 3 x 450V 60 Hz

Emergency generator: 1 x 110 kVA at 1,800 rpm, 3 x 450V 60 Hz

Performance:
30 m³/day at 14 knots(maxi speed 100%).

25 m³/day at 12 knots(service speed 80%).

15 m³/day at 9 knots(economic speed 50%).

Accommodation:
Fully air-conditioned.

Accommodation for 28 persons composed of:- 6 x single cabins, 5x 2 men cabins, 3x 4 men cabins.1 Office, 1 hospital, 2 mess/day rooms, laundry, galley,provision rooms, stores.

Thrusters:
Bow thruster: 2 x 500 KW tunnel,

electrically driven with CPPStern thruster: 1 x 500 kW tunnel, electrically driven with CPP

Towing/Anchor Handling Winches :
Main winch: 1 electro-hydraulic low pressure winch composed of 2 declutchable drums in waterfall arrangement

each equipped with:- Drum size: Dia. 900/2,090 mm x 1,800 mm length.

- Drum capacity: 1,500 m of 2¼" steel wire rope.

- Brake holding load: 225 t on 1 st layer.

- Rated Pull: 150 t on 1st layer at 0-8.4 m/min.

- Combined spooling device for both drums.

- 2 cable lifters 3" and 2½".Windlass: 1 combined mooring and windlass winch.Storage reel: 1 electro-hydraulic unit with 1 drum.

- Pull at 1st layer: 12 t at 0-18 m/min.

- Drum capacity: 1,500 m of 2¼" dia. wire.

- Drum size: 800/2,200 mm dia x 1,500 mm length.Stern roller: 1x 250 mt SWL,Dia: 1,500 mm, Length:4,000mm.Towing pins: 1 pair of vertical/retractable type, 250 t SWL.Shark jaws: 2 of 250 t SWL.

Tuggers: 2x 11 t at 25m/min.

Capstans: 2x 10 t at 14m/min.

Deck provisions crane: 1.7 t at 14 m.

Special Equipment:
Standby Rescue Equipment for 150 survivors: (optional).

Life saving arrangement: 1 MOB (Rescue boat) with davit,

- Life rafts with equipment,

- Lifebuoys, life Jackets.

FIFI I:

2,400 m³/h, (Remote controlled from wheelhouse).

- 2 water monitor 1,200 m³/h at 12 bars.(with foam capacity 300m³/h).

- Pumps: 2x 1,500 m³/h at 14 bars each .- Deluge system.Pushing rubber bow fenderKeel Cooling system

Electronics:
NAVIGATION

- 2 radars, 1 gyrocompass, 1 magnetic compass, 1 digital echo

- sounder.

- 1 speed log.

- 1 autopilot system.

- 1 GPS.COMMUNICATION

- 1 radio system compliant with GMDSS A3 rules including:

- 1 SSB duplex DSC 2 INMARSAT C 2VHF EPIRB SART NAVTEX

- 1 Iridium system,

- 1 INMARSAT F,

- E-mail and on-board computer network system,

- Automatic exchange telephone system with facilities in each room.

DP System (DP 1):
Comply with class notation DYNAPOS AM/AT (class 1).

- System allowing: dynamic positioning, automatic speed control.

- Reference system: 1 DGPS.

- Sensors: 1 gyrocompass, 1 wind sensor.
